HRS(HYDATA HDD Performance Rating System) is the world's first SAS Performance Rating System with blockchain technology.
Use blockchain time stamp to encrypt the results.Output professional reports of HDD's quality that can't be tampered with.
Each shelf places 16 HDDs.Supports repair up to 512 HDDs cascaded at the same time.
It doesn't occupy system resources.
It is an indispensable rating equipment for server HDDs remanufacturing.
HRS(HYDATA HDD Performance Rating System) It is the world's first SAS performance rating system with blockchain technology.Use blockchain time stamp to encrypt the results.Output professional reports of HDDs quality that can't be tampered with.
Each shelf places 16 HDDs.Supports repair up to 512 HDDs cascaded at the same time.Support server HDDs(SAS). Also support FC disk shelf and SCSI authentication disk shelf after the extension.
Support batch repair and batch performance rating.Use the factory firmware internal testing technology.Low host CPU utilization.Doesn't rely on the system bus speed.It can test HDDs with interface speeds of 1.5G/S, 3G/S, 6G/S, 12GB/S.
Supports the capacity of a HDD from 9.1GB~16TB.Supports up to 512 HDDs batch test at the same time.
HRS and rating results can be used directly in remanufactured HDD's deal.
The following procedures can be performed in HRS:Batch formatting,Clear warnings,Clear G-list,Back up firmware files,etc.
You can customize the test process according to different firmware versions.Output professional reports of HDD's quality.Support Qr code scanner, special label printer, QR code verification by phone, time stamp verification.
Even though different storage has different performance requirements for HDDs.HRS can rate and repair HDDs according to the performance standards of minicomputer storage,such as IBM, HP, DELL, EMC, NETAPP, SUN, etc.
It is an indispensable rating equipment for server HDDs remanufacturing.
Professional Reliability Time Stamp Technique
Blockchain Technology Factory Firmware Professional Rating
| Parameters | ||
| Capacity | Number of HDDs that can be placed | 16 HDDs |
| Maximum number of cascade shelf | 32 shelves | |
| HDD Physical Parameters | 3.5" SAS、2.5"SAS；3.5" SATA、2.5"SATA； | |
| HDD Physical Interface Rate | 1.5G~18G | |
| Internal Transfer Rate | 1.5G~3G、6G、12G、18G+ | |
| External Transfer Rate | 3G/s | |
| Supported SAS HDD Capacity | 9.1G~16TB+ | |
| SATA support a maximum of 2TB (limited by SAS protocol) | ||
Power Requirements | Power Module | 2x450W (HotPlug) |
| Power Requirement | 100~240VAC，47~63Hz | |
| Maximum Current | 8A（100V）；4A（240V） | |
| SYSTEM FAN | N+1 Redundant design | |
| Hardware Specifications | ||
Physical Characteristics | Size | 3U，460.5mm（W）x446.2mm（D）x131mm（H） |
| Weight | 15.8kg±5% | |
| Working Temperature | +10°C~+35°C | |
| Working RH | +20%~+80%（non-condensing） | |
| Storage Temperature | -40°C~+70°C | |
| Storage RH | +10%~+95%（non-condensing） | |
| Altitude | -60m~+3000m | |
Product Certification | Product Certification | CB，CE，FCC-class-A，UL，RoHS |
Main Interface of HRS
Task Interface of HRS
Batch Formatting Interface of HRS
SCSI Functions
Task Center Functions
Universal Tests Functions
Factory Tests Functions
Report Functions
Context Menu
Show Information Function
Family Define Function
Verify Code Function
Custom Task Setting Function

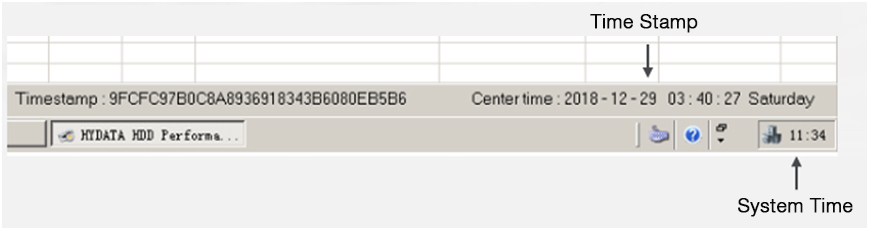

HRS Offline time stamp
Video:

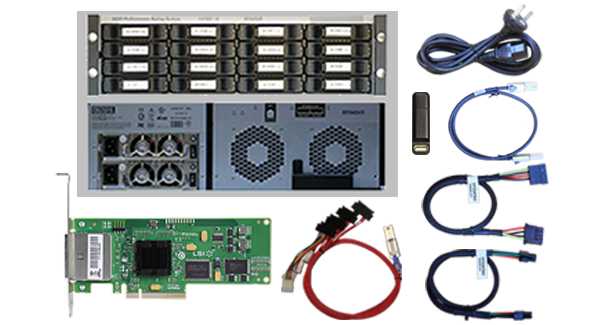

SCSITOOLS HRS POD
LSI SAS3801E (3G)

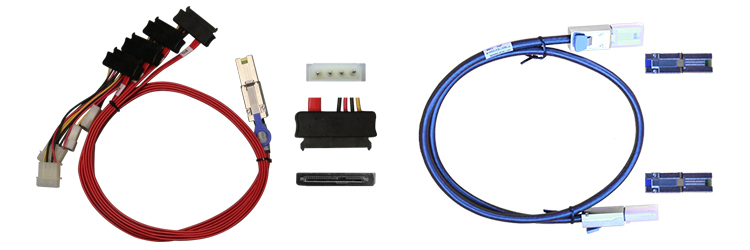

L05 Power Cable L13 Control Cable
L25 Data Cable L33 Data Cable
L34 Power Cable

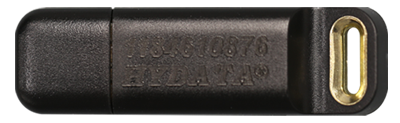

HYDATA Key
| Model | Product Name | Quantity |
| 3238011-008 | SCSITOOLS HRS POD | 1 |
| 3538010-065 | LSI SAS3801E (3G) | 1 |
| 3400001-027 | HYDATA Key | 1 |
| 3400000-033 | L05 Power Cable | 1 |
| 3400000-053 | L25 Data Cable | 1 |
| 3400000-041 | L13 Control Cable | 1 |
| 3400000-079 | L33 Data Cable | 2 |
| 3400000-080 | L34 Power Cable | 2 |
