"SCSITOOLS" is a professional HDD firmware data recovery tools for servers and storage.
1.It provides access to the SA of HDDs.
2.It has multiple functions such as read and write ROM, read and write modules, read and write service tracks , translate regeneration etc.
3.Supported interface types:SCSI, SAS, FC, SSA, USCSI.
4.Supported servers brands:DELL, IBM, SUN, etc.
5.Supported HDD brands:Seagate, HGST, Toshiba, Maxtor, WDC, Fujitsu, etc.
6.It supports 100+ HDD families and 1000+ firmware versions.
7.SCSITOOLS Litepro POD has intelligent power control port*4 and 12Mbit TTL port*4.
SCSITOOLS is used for professional servers and storage data recovery.
SCSITOOLS recovers data from damaged HDDs of minicomputers such as IBM, HP, DELL and professional cloud storage systems such as EMC, NETAPP, SUN.

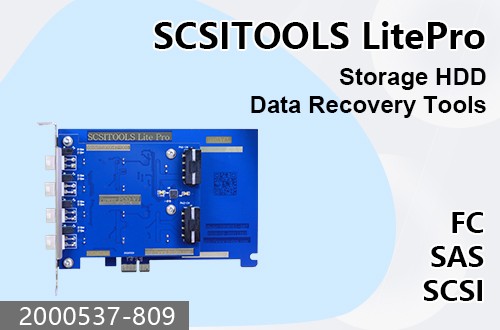

SCSITOOLS LitePro is a hardware+software solution intended for recover data from damaged HDDs.
Entering the factory mode allows the users to access the HDD's firmware and ROM,RAM microcode.Then perform professional firmware system repair on HDDs to save valuable data.
It currently supports the following HDD brands: Seagate, Western Digital (WDC), Fujitsu, Toshiba, IBM, Maxtor, Hitachi (HGST), etc.
The following procedures can be performed: Read ROM, Modules Reading, Clear S.M.A.R.T, Reset PowerOn Hour, Move G-LIST to P-LIST,Generate LOD.
SCSITOOLS LitePro POD has intelligent power control port*4 and 12Mbit TTL port*4.
Quick Installation High Reliability Wide Application Easy to Use
Offline Installer Quality Hardwares 1000+ Firmware Versions Easy to Operate Easy to Install Running Stability 100+ HDD Families User-Friendly Interface
Functions / Models | Mini POD | Lite POD | LitePro POD | Express POD | Deluxe POD |
| Interface Type | USB | PCI | PCI-E 1x | PCI-E 4x | PCI-E 8x |
| PCB's Color | Green | Blue | Blue | Red | Matte Black |
| Power Control Port | 1 | 1 | 4 | 4 | 4 |
| Independent Power Supply Port | 0 | 3 | 0 | 0 | 0 |
| TTL Port | 1 | 0 | 4 | 4 | 0 |
| Factory Programming Port（TAP） | 0 | 0 | 0 | 1 | 0 |
| SAS Port | 0 | 0 | 0 | 0 | 4 |
| Data Explorer（DE） | X | X | X | X | ✓ |
| Connect to HRS | X | ✓ | X | ✓ | ✓ |
| JIG | Optional | Optional | Optional | Standard | Standard |
| Transport for Free | ✓ | ✓ | ✓ | ✓ | ✓ |
Brands that support firmware area functions：Seagate、Western digital、Fujitsu、Toshiba、IBM、Maxtor、Quantun、Hitachi、HGST
1.Seagate

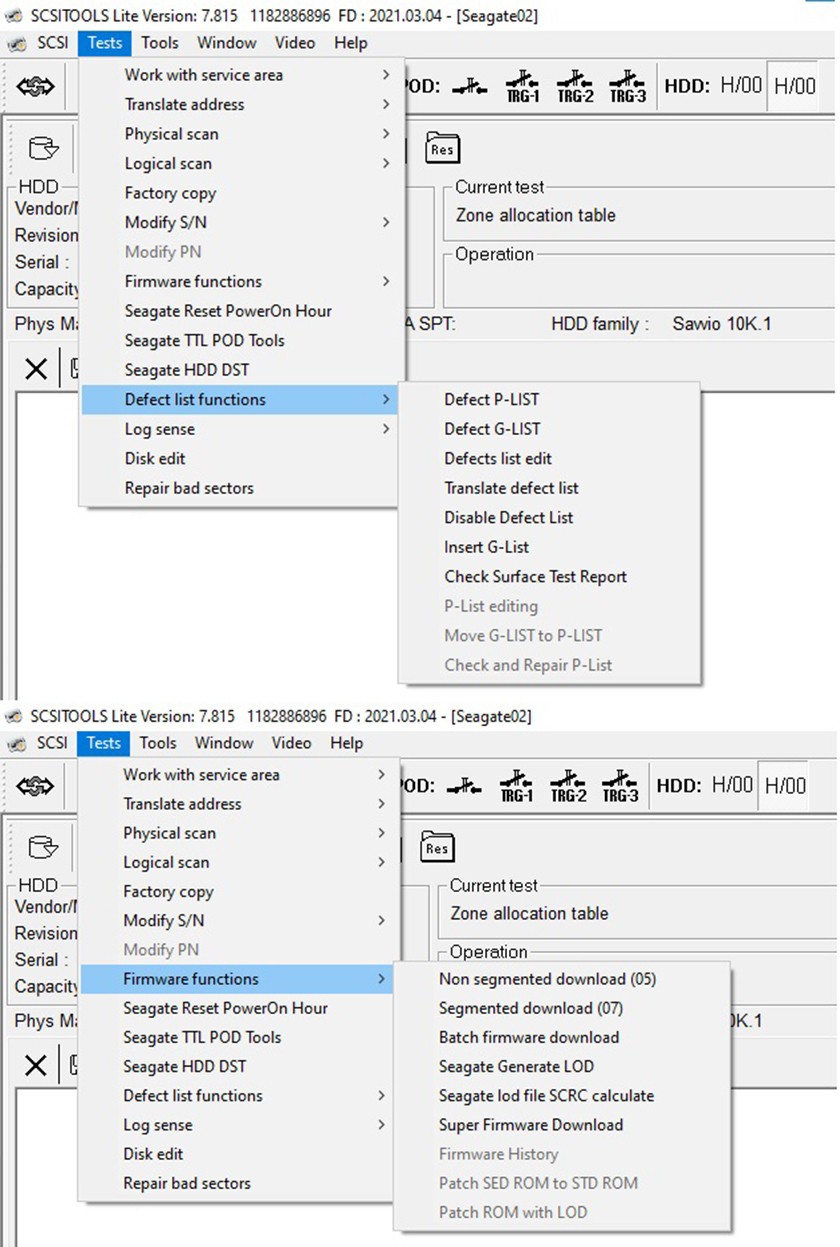

Seagate module supports the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/Seagate/
2.Western digital
Western digital module supports the following firmware area functions
3.Fujitsu
Fujitsu module supports the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/Fujitsu/
4.Toshiba
Toshiba module supports the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/Toshiba/
5.IBM
IBM module supports the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/IBM/
6.Maxtor、Quantun
Maxtor、Quantun modules support the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/Maxtor/
7.Hitachi
Hitachi module supports the following firmware area functions
Video:https://ftp.hydata.com/Downloads/scsitools/scsitools.Lite/Resources/Video_TechVideo/Hitachi&HGST/
SAS FC
SCSI-50Pin SCSI-68Pin
SCSI-80Pin SSA

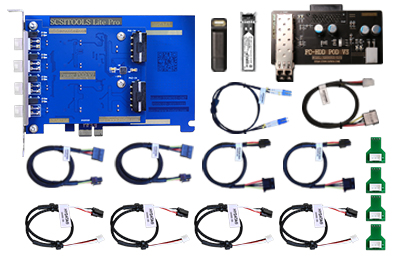

1.SCSITOOLS LitePro POD

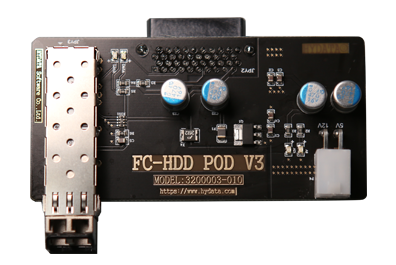

FC-HDD POD V3
FTLF8524P2BNL

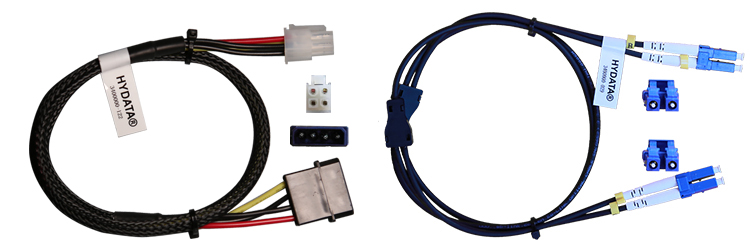

L39 Power Cable L01 Fibre Cable
L12 Power Cable L30 Power Cable
L36 Data Cable TTL Adapter

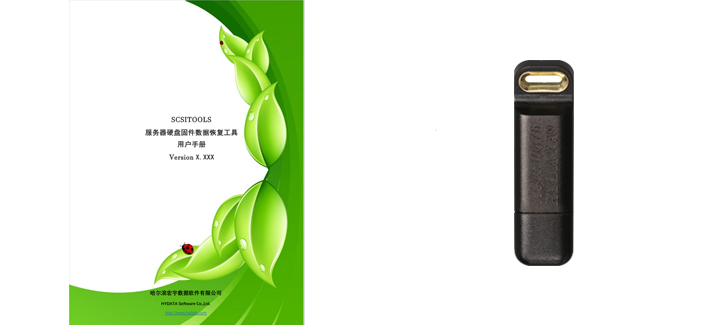

User Manual HYDATA Key
(PDF)
| Model | Product Name | Quantity |
| 3208051-087 | SCSITOOLS LitePro POD | 1 |
| 2020527-809 | User Manual (PDF) | 1 |
| 3400001-027 | HYDATA Key | 1 |
| 3200003-010 | FC-HDD POD V3 | 1 |
| 3200001-078 | FTLF8524P2BNL | 1 |
| 3400000-122 | L39 Power Cable | 1 |
| 3400000-029 | L01 Fibre Cable | 1 |
| 3400000-040 | L12 Power Cable | 1 |
| 3400000-069 | L30 Power Cable | 1 |
| 3400000-090 | L36 Data Cable | 4 |
| 3400001-021 | TTL Adapter | 4 |
| 2010523-365 | Free Software Upgrade for 3 years | 1 |
